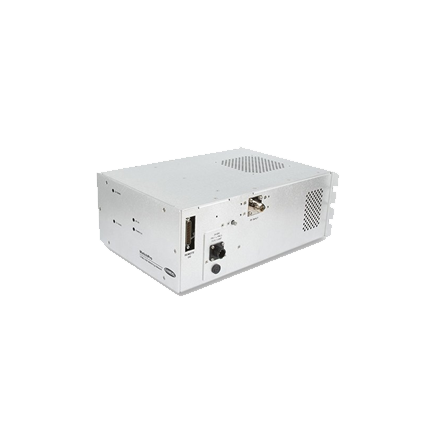

Match Pro Matching Networks

Fast Tuning and Fine Tune Resolution Deliver Repeatable Process Results

Custom Designs to Fit Your Specific Application

Performance

All Match Pro impedance matching networks are engineered with XP Power's unique PROTRAK, a high-speed tuning algorithm that gradually slows the system as it approaches the tuning point, allowing a precise match even in high "Q" loads. This proportional control circuitry illustrates the critical difference between XP Power's Match Pro and other matching networks. The Match Pro adjusts input impedance to 50 Ohms quickly, accurately and dependably—in response to the changes in load characteristics during your process. The Match Pro operates over a power range from 50 to 50,000 Watts.

Features

Automatic and manual modes with local and remote manual control of tuning capacitors

Ability to pre-position capacitors to optimal plasma ignition point prior to turn on, resulting in quick and reliable tuning

Capacitor position outputs to show where the match occurs from process to process

High power, H-bridge, Mosfet motor drive circuitry is conservatively rated for improved reliability

Optional BLDC motors and drive for improved motor life cycle

Optional DC Bias and RF VP-P detector circuits available
